可用于：各类立式。横式包装机、各类制袋机、分切机、分条机、等印刷机械上。作为色标的识别，精确控制包装袋长短，自动纠偏等领域。
型号：ESA-111G
检测方式：同轴反射型
电源电压：10-30V直流 波10%以下（P-P）
品牌：克特
消耗电流：≤30mA
检测距离：10mm

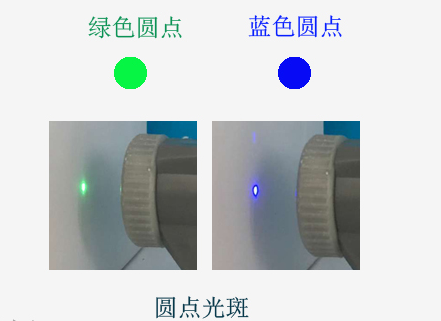

光源 ：绿光 （常用）兰光 白光 红光四种可选；（购买时请注明）
光点:￠1.5mm--0.5mm可选
开关速度：2K HZ以上
输出电流：≤200mA 输出：NPN
动作指示：LED 红色
1P67防尘、防水
抗外光 灯泡10000LUX 太阳光100000LUX
使用温度：工作0-70度 保存-25度--80度
耐振动 10--55HZ复振幅1.5mm XYZ三方向各2小时
电线2M长
外壳：塑料灰色 （白色）
克特色标光电传感器采用光发射接受原理，发出调制光，接收被检测物体的反射光，并根据接收光信号的强弱来区分不物体的色谱、颜色，或判别物体的存在与否。在包装机械、印刷机械、纺织机械及造纸机械的自控系统中作为传感器与其它仪表配套使用，对色标或其它可作为标记的图案色块、线条，或对物体的有无进行检测，可实现自动定位、辩色、纠偏、对版、计数等功能。 色标光电传感器融合光学技术、半导体电子技术、调制解调技术于一体，具有灵敏度高、响应速度快、抗背景光干扰及电磁谐波干扰能力强等特点，且有结构紧凑、外型美观、调试简便、定位准确等优点。
The KTGEE color code photoelectric sensor adopts the principle of light emission and reception, emits modulated light, receives the reflected light of the detected object, and distinguishes the color spectrum and color of objects or determines the presence or absence of objects based on the strength of the received light signal. In the automatic control systems of packaging machinery, printing machinery, textile machinery, and papermaking machinery, it is used as a sensor in conjunction with other instruments to detect color codes or other pattern color blocks, lines that can be used as markers, or to detect the presence or absence of objects. It can achieve functions such as automatic positioning, color discrimination, correction, plate alignment, and counting. The color code photoelectric sensor integrates optical technology, semiconductor electronic technology, and modulation and demodulation technology, and has the characteristics of high sensitivity, fast response speed, strong resistance to background light interference and electromagnetic harmonic interference. It also has the advantages of compact structure, beautiful appearance, easy debugging, and accurate positioning.
