M30接近开关

M30接近开关

型号:M30接近开关

品牌:克特

联系电话:021-51860181

E-mail:KT@KTGEE.NET.CN

产品介绍

产品咨询


Features:
Thread size / 螺纹尺寸:  M30 屏蔽式 / M30 非屏蔽式

Sn / 检测离距: (屏蔽式)标准Sn=10mm    长距Sn=16mm     超长Sn=22mm

Sn / 检测离距: (非屏蔽式)标准Sn=15mm    长距Sn=25mm     超长Sn=40mm
The power supply/工作电压
DC: 5-60V     AC: 20-250V
No-load current / 空载电流:DC: <10mA    AC: <5mA
Maximum load current / 最大负载电流:DC: 200mA     AC: 400mA
Leakge current / 漏电流:DC: <0.01mA    AC: <1.8mA
Voltage drop max / 电压降:DC: <1.5V       AC: 8V
Swithing frequency / 开关频率:DC: 500Hz      AC: 25Hz
Response time / 响应时间:DC: 0.1mS /0.1mS    AC: 10mS /10mS
Swithing hysteresis / 开关滞后:<15%(sr)
Repeat accuracy / 重复精度:<1.0% (sr)
Degree of protection / 防护等级:IP 67

Operating temperature / 工作温度:-25℃—+70℃

Temperature drift / 温度漂移:<10%(sr)

Short circuit protection / 短路保护:Yes

Led display / LED灯显示Yes

Material active face / 感应面材料POM

Housing material / 外壳材料黄铜镀镍

The connection method / 连接方式
2米引线

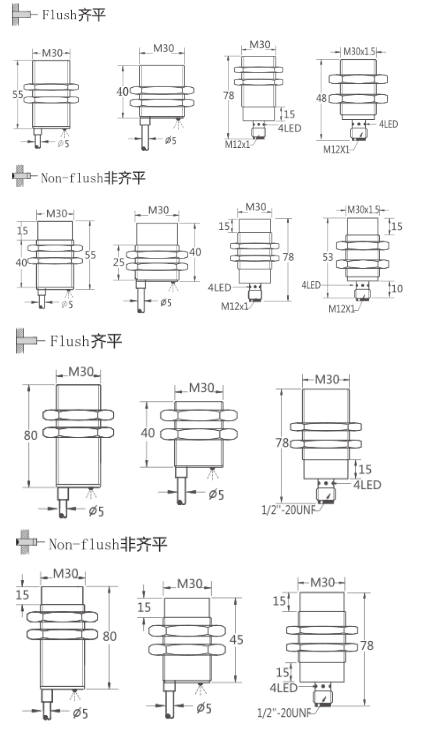

Machine size map/机械尺寸图:
